Panel Air Filter Gluing Machine

With a production capacity of 6 pieces per minute and compatibility with workpieces up to 350mm in width, Pulan factory's Panel Air Filter Gluing Machine is suitable for continuous production of panel air filters.

What is a Panel Air Filter Gluing Machine?

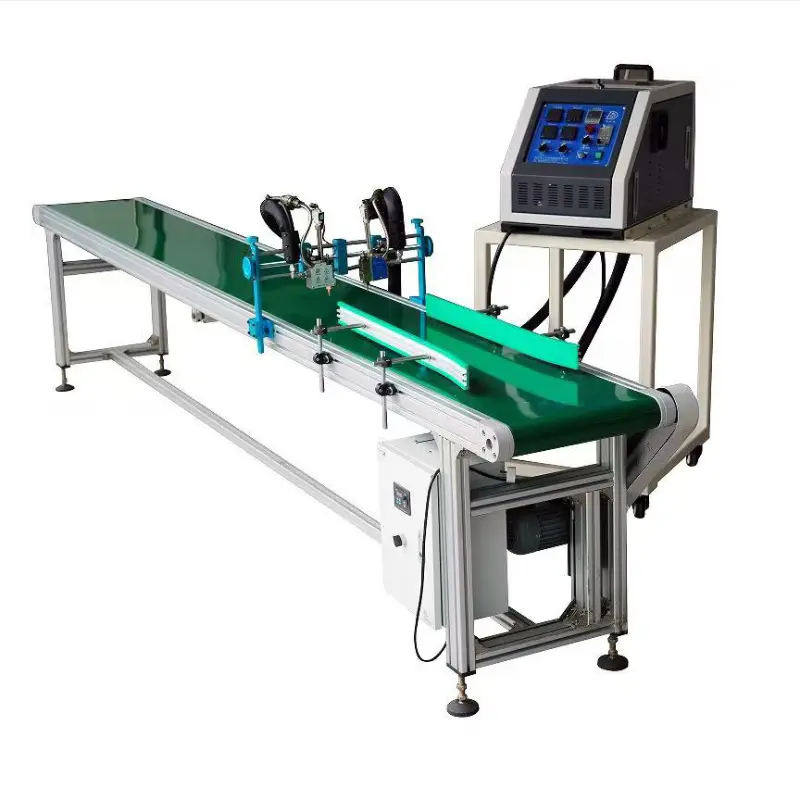

The Panel Air Filter Gluing Machine made in China is an automated hot melt adhesive dispensing system developed for rectangular air filter elements. It integrates left and right glue nozzle mechanisms, a filter conveying mechanism (flat belt with positioning strips), and a hot melt glue machine.

During operation, the sensor detects when the filter element approaches the glue nozzle area and automatically activates adhesive dispensing. As the filter moves through the gluing position, two independent glue heads apply parallel adhesive lines simultaneously. After the filter passes through the nozzle area, the system automatically stops dispensing glue.

The precise adhesive application process helps prevent excessive contact between filter paper pleats caused by external pressure, reducing airflow resistance and maintaining filter performance.

Applications & Machine Configuration

Applications

Main Components

Operating Principle & Production Process

The filter element moves forward on the conveyor belt. When the sensor detects the filter entering the gluing area, it activates the glue dispensing system. The two glue heads operate simultaneously to apply two parallel adhesive lines on the filter surface. After the filter passes the glue heads, dispensing stops automatically.

Production Steps

1. Preparation: Turn on the hot melt glue machine and heat it to the preset temperature until the adhesive is fully melted.
2. Adjustment: Adjust the front table guide strips and conveyor positioning strips according to filter width. Adjust glue nozzle height according to filter thickness and set the distance between two glue heads according to required glue line spacing.
3. Loading: Place the filter element on the front working table and gently push it onto the conveyor belt.
4. Conveying: The conveyor moves the filter forward, and the sensor detects the correct position to activate gluing.
5. Adhesive Application: Two glue heads simultaneously dispense two parallel glue lines as the filter passes underneath.
6. Glue Stopping: The sensor triggers automatic glue cutoff after the filter leaves the gluing area.
7. Output: The conveyor transfers the finished filter element out of the machine.

Key Advantages

1. Dual Glue Heads for Two-Line Application
Two independent glue heads work simultaneously, completing two adhesive lines in one pass and improving production efficiency.
2. Sensor-Controlled Precise Adhesive Dispensing
The system automatically starts and stops glue dispensing according to filter position, reducing adhesive waste and ensuring accurate application.
3. Automatic and Manual Operation Modes
Both operating modes are available to meet different production requirements and process conditions.
4. Improved Filter Performance Stability
The applied glue strips provide additional support, preventing filter pleats from closing under pressure, reducing airflow resistance, and extending filter service life.
5. Adjustable Glue Nozzle Position
The left and right glue heads can be independently adjusted in horizontal spacing and vertical height to accommodate different filter sizes and glue line positions.
6. Large-Capacity Hot Melt Glue System
The 10kg glue tank reduces frequent adhesive refilling. The 4kW heating system provides fast heating and stable temperature control for continuous production.
7. Compact Structure and Easy Integration
With a main machine size of 2400×585×1250mm, the equipment can be installed as an independent workstation or integrated into a filter production line.
8. Simple Maintenance Requirements
Routine maintenance mainly includes removing residual adhesive, lubricating transmission chains, and regularly draining and lubricating pneumatic components.

Technical Specifications

Installation Requirements

1. Install the machine on a flat, clean, and well-ventilated floor away from high temperature and dust.
2. Maintain clearance of at least 1 meter at the front and rear, and 1.5 meters on both sides.
3. Use a forklift with a capacity of more than 1 ton for transportation.
4. Secure the machine and adjust the level before operation.
5. Connect to a dedicated 380V/50Hz power supply with proper grounding.
6. Provide compressed air at 0.6MPa.
7. Check cables, emergency stop button, and safety guard before startup.

Frequently Asked Questions

Q1: Why does the glue nozzle fail to dispense adhesive?

A: Possible causes include:

① No adhesive inside the hot melt glue unit or insufficient temperature → Add adhesive and wait until the preset temperature is reached.

② Air supply to the glue gun is not connected → Check the pneumatic circuit.

③ Glue machine malfunction → Inspect or replace the unit.

Q2: What should I do if the two glue lines are not symmetrical?

A: Adjust the left and right glue heads separately using the adjustment handwheels. Rotate the left adjustment wheel clockwise to move the left nozzle rightward and counterclockwise to move it leftward. Adjust the right nozzle in the same way until both glue lines are symmetrical.

Q3: Why does adhesive scraping occur when the filter passes through the glue nozzle?

A: The glue nozzle height may not match the filter height. Loosen the slide bar fixing screws and adjust the nozzle height using the lifting adjustment handwheel. Tighten the screws after adjustment.

Q4: Can the machine handle filters with different widths?

A: Yes. Adjust the spacing of the front table guide strips and conveyor positioning strips according to the filter width. The machine supports workpieces with widths up to 350mm.

Ordering Information

The Panel Air Filter Gluing Machine is designed for high-volume dual glue line application on rectangular air filter elements.

Pulan provides free sample testing—customers can send filter elements for trial gluing and evaluation before purchase.

Customized solutions are available for different glue line quantities, such as the PLFJ-3 three-line gluing model, or special workpiece widths.

Each machine is supplied with Chinese and English operating manuals, electrical drawings, and pneumatic component lists. As a professional adhesive dispensing equipment manufacturer, Pulan provides factory-direct pricing, a one-year warranty, and long-term spare parts support, including glue nozzles, heating tubes, conveyor belts, and sensor switches.

Contact us for a quotation or arrange a factory visit.
