High-Performance Heavy-Duty Air Filter Making Machine for Reliable Large-Scale Production

As a professional manufacturer in China, Pulan factory's Heavy-Duty Air Filter Making Machines are critical components for trucks, construction equipment, and agricultural machinery.

Key machines include:

Our machine lineup includes the PLGT-1000N rotary pleating line for precise paper folding;

The PLTK-16 turntable curing system featuring 16 stations with independent temperature zones adjustable from ambient to 300°C;

The PLRZ-1000N hot melt bonding machine for robust filter element assembly.

Additionally, the PLJY109-500 spiral coiling machine handles expanded mesh with exceptional accuracy, while the PLDH-1 spot welder ensures reliable wire mesh attachment. Pulan's heavy-duty equipment is engineered for around-the-clock industrial operation, minimizing downtime and maximizing output.


As a trusted factory in this niche, we offer customization options to match specific filter dimensions and production volume requirements, delivering durable machinery that performs under demanding conditions.



View as

Full-Auto 60 Stations U-Type Curing Oven Line

Full-Auto 60 Stations U-Type Curing Oven Line

High quality Full-Auto 60 Stations U-Type Curing Oven Line is offered by China manufacturer Pulan. It is a specialized production line for glue curing of automotive air filter elements, adopting a 60-station U-type rotary structure. The chain drives the shaping stations to continuously circulate through the high-temperature curing oven.

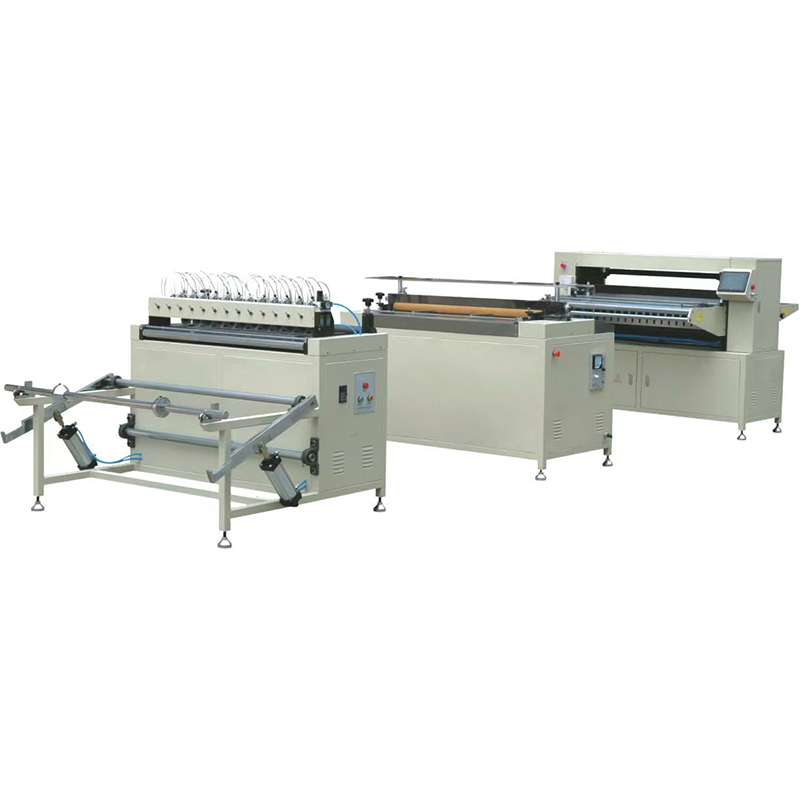

Full-Auto Knife Paper Pleating Production Line

Full-Auto Knife Paper Pleating Production Line

High quality Full-Auto Knife Paper Pleating Production Line is offered by China manufacturer Pulan. It is a fully automatic pleating production line for paper filter elements used in filters and purifiers, integrating pre-slitting, creasing printer, folding and shaping into one system. The maximum filter paper width is 1050mm, minimum slitting width is 32mm, creasing pitch is adjustable from 10~100mm, fold height is steplessly adjustable from 8~55mm, and folding speed reaches 0~110 folds/min.

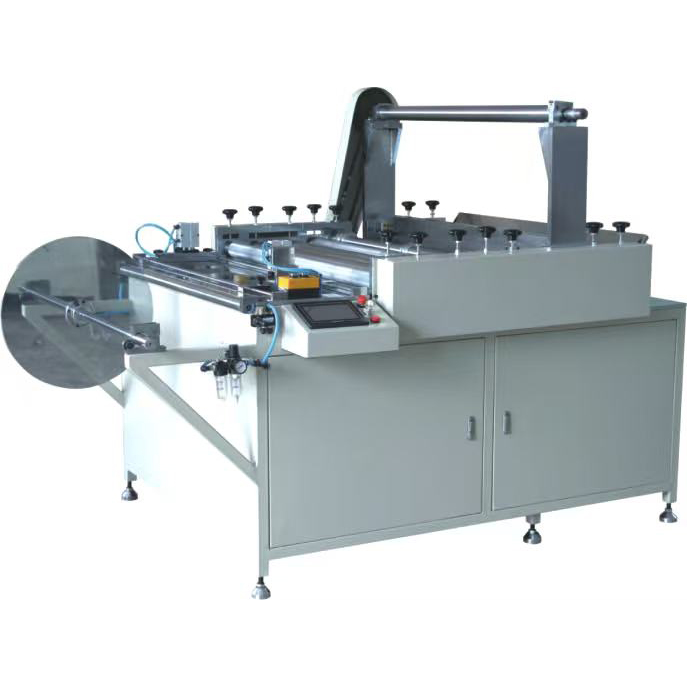

Hdaf Mesh Cutting And Rolling Machine

Hdaf Mesh Cutting And Rolling Machine

As a professional manufacturer in China, Pulan would like to provide you with high-quality Hdaf Mesh Cutting And Rolling Machine. It is a specialized rolling machine for inner and outer protective mesh of air filter elements and air filter assembly housings. It integrates material feeding, leveling, cutting (mesh breaking), fixed-length cutting, rolling, and waste material winding into one machine.

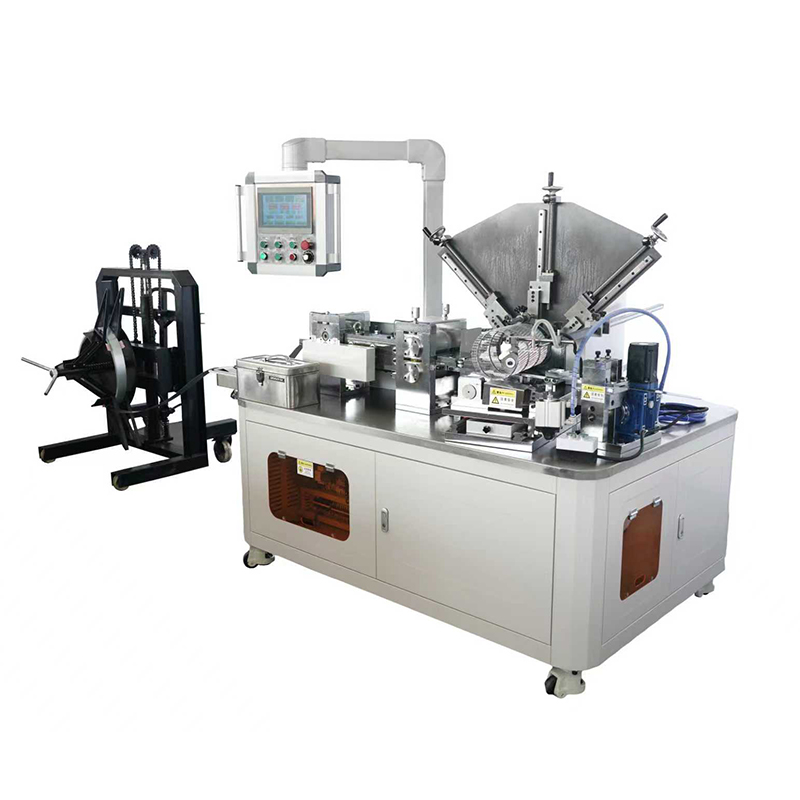

Full-Auto Hdaf Wire Mesh Rolling Machine

Full-Auto Hdaf Wire Mesh Rolling Machine

Buy quality Full-Auto Hdaf Wire Mesh Rolling Machine from Pulan factory in China. It is a specialized machine for spiral rolling and forming of large air filter outer mesh (steel strip). It adopts pull-type continuous feeding and completes mesh feeding, flattening, rolling, and cutting in one process.

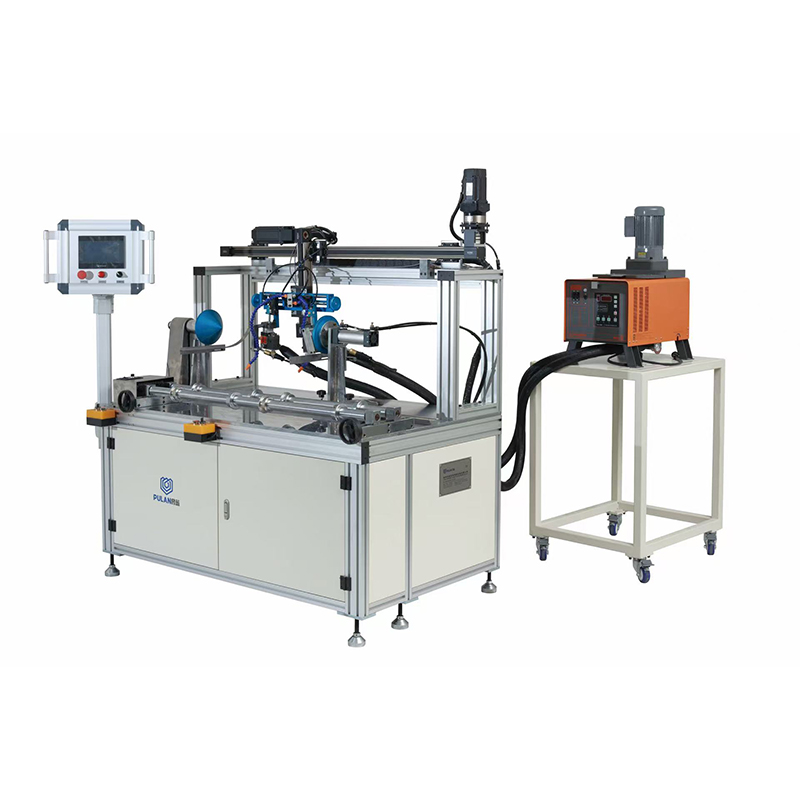

Hdaf Gluing Machine

Hdaf Gluing Machine

Pulan factory's high-quality Hdaf Gluing Machine uses a pneumatic cylinder to quickly clamp the filter element through tapered heads. The stepper motor drives the filter element to rotate, while the trapezoidal screw drives the glue box and winding device to move left and right synchronously, achieving uniform wire winding and simultaneous glue dispensing. It is suitable for outer-circle wire winding and glue injection reinforcement of oil filter elements.

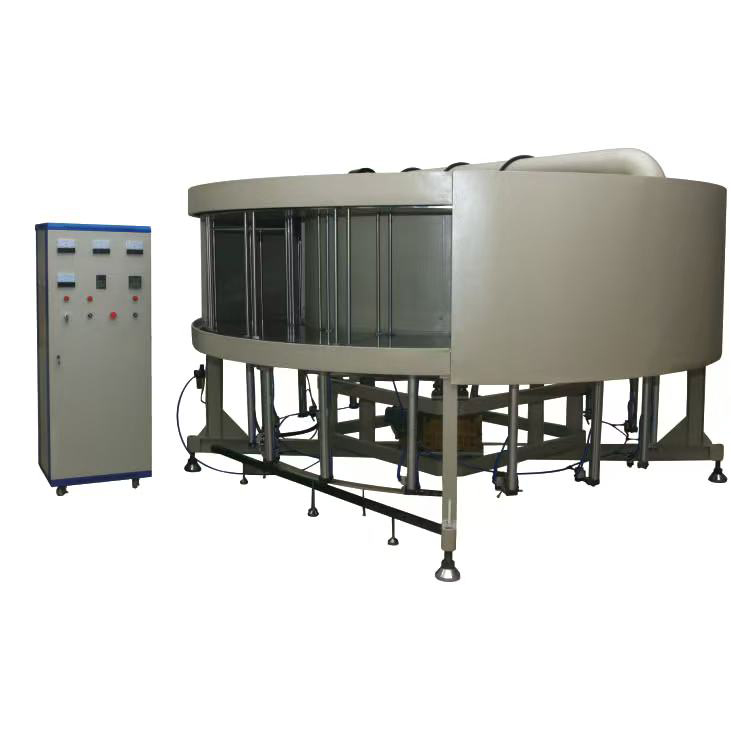

Full-Auto 16-Station Hdaf Turntable Curing Production Line

Full-Auto 16-Station Hdaf Turntable Curing Production Line

Pulan, a leading Chinese manufacturer, offers a high-quality Full-Auto 16-Station Hdaf Turntable Curing Production line. It has a production capacity of 120-180 pieces/hour and is suitable for filter cartridges with a height ≤500mm and a diameter ≤450mm. The equipment has a small footprint, convenient material loading and unloading, and is suitable for large-scale continuous drying.
Pulan is a professional Heavy-Duty Air Filter Making Machine manufacturer and supplier in China. We warmly welcome you to wholesale high quality products from our factory.
