Full-Auto Hdaf Expanded Mesh Spiral Coiling Machine

Buy quality Full-Auto HDAF Expanded Mesh Spiral Coiling Machine from Pulan, a professional manufacturer in China. With fast mold replacement, adjustable tube diameter and length, a smooth finished surface requiring no secondary processing, and minimal material waste, it offers an economical solution for large-scale mesh tube manufacturing.

Technical Specifications

Machine Introduction

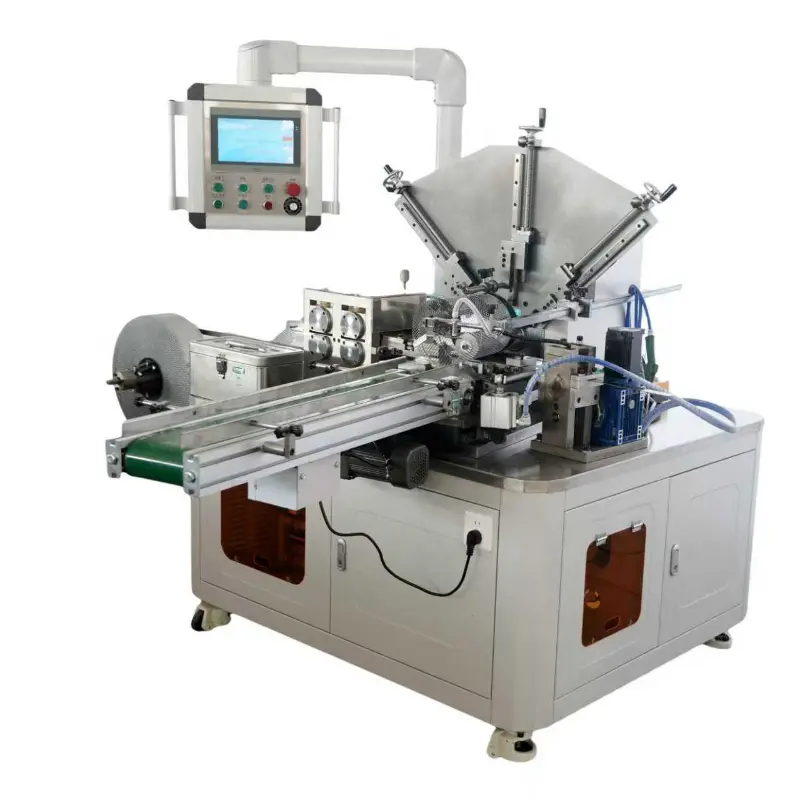

The Full-Auto HDAF Expanded Mesh Spiral Coiling Machine is an automatic forming machine designed for manufacturing spiral cylinders from expanded metal mesh used in heavy-duty air filters. It incorporates a decoiler, mesh feeding mechanism, flattening unit, spiral forming spindle, cutting assembly, and PLC touchscreen control system into a compact production line.

The expanded mesh is continuously fed into the machine, flattened before entering the forming section, spirally wound around the selected die, and automatically cut once the preset length is reached. It is widely used for producing outer protective meshes and support tubes for heavy-duty truck filters, construction equipment filters, and industrial dust collection cartridges. The machine processes 109mm-wide steel strip with a thickness range of 0.25–0.4mm and supports finished diameters from Φ80mm to Φ500mm. Fifteen sets of interchangeable dies (sizes 13–35) allow operators to switch product diameters quickly by following the corresponding tooling specifications.

Applications & Machine Configuration

Typical Applications

Machine Configuration

How the Machine Works

The machine continuously feeds expanded mesh through the feeding rollers into the flattening section, where the material is straightened before entering the rotating spindle. Guided by the selected forming die, the mesh is spirally coiled into a cylindrical shape. Once the preset tube length is reached, the pneumatic cutter automatically completes the cutting process, allowing the finished mesh cylinder to be removed before the next production cycle begins.

Production Steps

1. Material Preparation: Mount the steel strip coil onto the decoiler, align the feeding inlet, and trim the strip end to an approximately 30° taper.
2. Tool Installation: Select the appropriate forming die according to the required diameter and secure it using two M4×10 countersunk screws. Adjust the die support rod for reinforcement.
3. Machine Setup: Select manual mode on the touchscreen, perform the automatic cutter reset, and set the machine angle and cutter parameters according to the specification chart.
4. Initial Feeding: Feed the strip slowly into the die using the inching function while manually guiding the first spiral turn.
5. Automatic Production: Switch to automatic mode and adjust the operating speed. The machine continuously forms spiral mesh cylinders.
6. Cutting Process: During initial setup, remove excess material manually after one revolution if necessary. During normal production, the cutter automatically trims the mesh to the preset length.
7. Finished Product Removal: Remove the completed mesh cylinder and continue the next production cycle.

Performance Advantages

Installation Guidelines

1. Install the machine on a clean, level, and well-ventilated floor away from excessive heat and dust.
2. Leave at least 1 meter of clearance around the machine.
3. Move the machine with a forklift, secure it firmly, and level it before operation.
4. Connect the machine to a dedicated 380V/50Hz power supply with proper grounding.
5. Supply compressed air at 0.6MPa.
6. Check the power cable, emergency stop switch, and safety guards before startup.
7. Before initial operation, manually rotate the machine to ensure there is no mechanical interference.
8. Remove the cutter rod stopper when producing mesh cylinders below Φ200mm, and reinstall it for diameters above Φ200mm.

Frequently Asked Questions

Q1: Why is the finished mesh cylinder diameter larger or smaller than required?

A: An oversized diameter is generally caused by insufficient pressure between the feeding rollers, while an undersized diameter usually results from excessive pressure. Adjust the feeding roller clearance first, then fine-tune the locking wheel if necessary.

Q2: Why does the spiral seam separate after forming?

A: The edge-forming wheel may not be applying enough pressure. Increase its pressure to ensure the seam is securely locked.

Q3: How should material feeding problems be handled?

A: Check that the strip end has been cut to an approximately 30° taper and that the feeding inlet is properly aligned. If the material jams, remove the inlet guide plate, clear the blockage, reinstall the guide plate, and restart production.

Q4: Is there any difference when producing cylinders below or above Φ200mm?

A: Yes. Remove the cutter rod stopper for diameters below Φ200mm, and reinstall it when producing cylinders larger than Φ200mm to ensure proper coiling and cutting.

Ordering & Support

The Full-Auto HDAF Expanded Mesh Spiral Coiling Machine is an ideal solution for large-scale production of expanded mesh tubes for heavy-duty air filters and dust collection systems.

We offer free sample trials—simply send us your steel strip, and we will manufacture sample products for your evaluation before purchase. Customized machines are available for different strip widths or material thicknesses by changing the corresponding tooling and feeding components.

Each machine is supplied with Chinese and English operating manuals, electrical drawings, and tooling specification charts. Pulan also provides factory-direct pricing, a one-year warranty, and long-term spare parts support, including cutters, forming dies, feeding rollers, and pneumatic sealing components. Contact us for a quotation or schedule a factory visit.
