Pulan Factory's Full-Auto Hot Melt Filter Paper Bonding Machine is a specialized piece of equipment for hot melt adhesive bonding of automotive filters (oil filter, fuel filter, and air filter) and hydraulic filter element connectors, with a maximum bonding length of 1000mm.

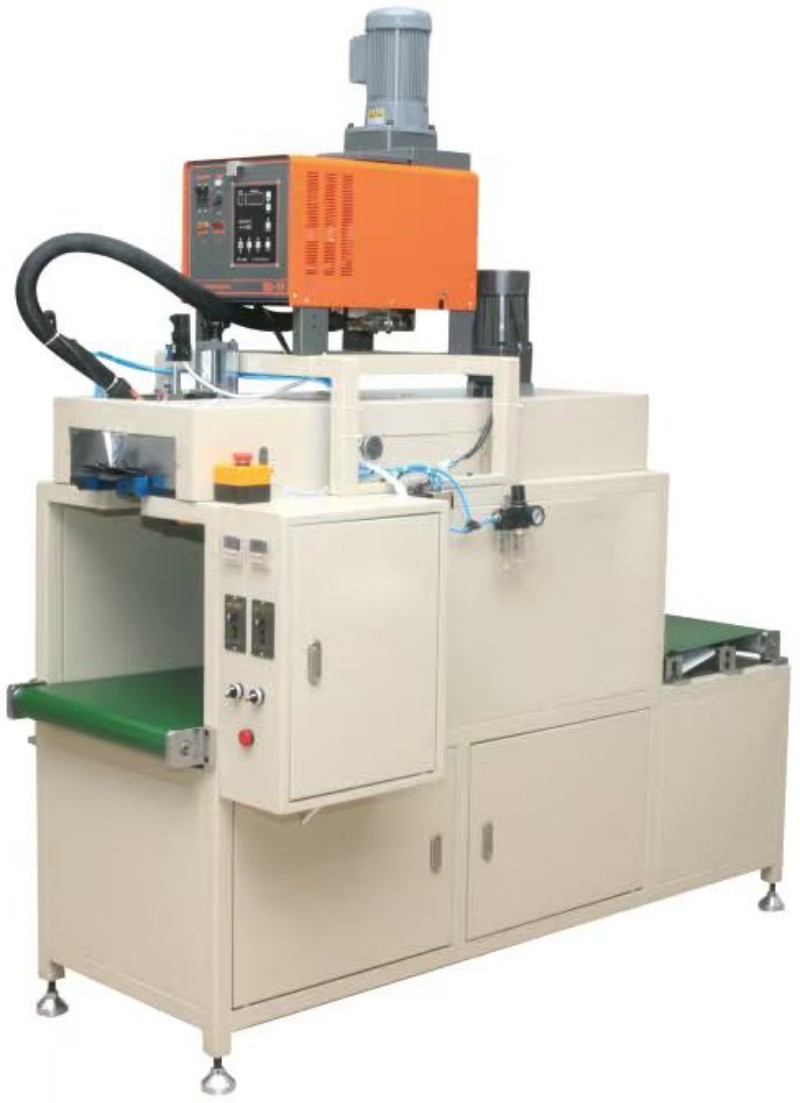

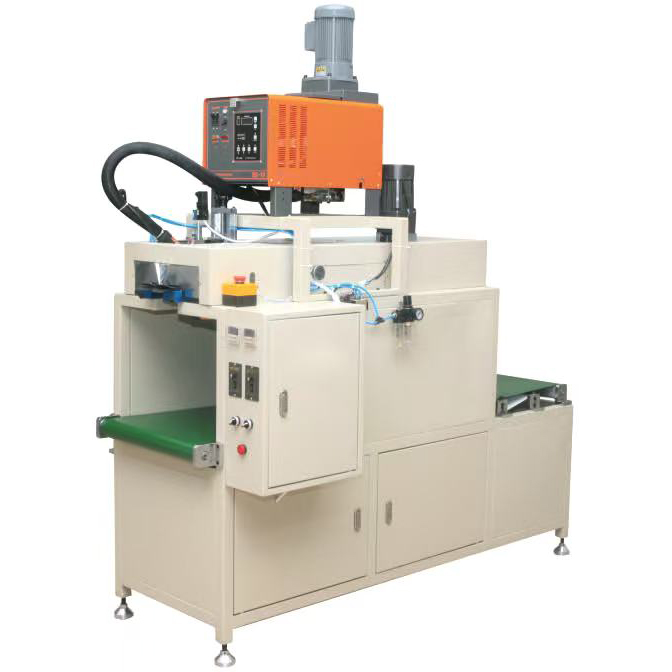

A Full-Auto Hot Melt Filter Paper Bonding Machine is an automated device for hot melt adhesive bonding of end caps on long filter cartridges (up to 1000mm). It consists of a dispensing head mechanism, a conveying mechanism (double synchronous belts + flat belt), a hot melt adhesive machine, and an infrared monitoring system. During operation, the filter cartridge is inserted into the inlet, detected by the infrared sensor, and released by the positioning cylinder. The filter cartridge enters the dispensing station, the dispensing head automatically dispenses adhesive, and the synchronous belts pressurize and convey it backward. The finished product falls onto the flat belt for output. It is suitable for high-volume production of long filter cartridge bonding.
Full-Auto Hot Melt Filter Paper Bonding Machine is suitable for hot melt adhesive bonding of joints for:
Automotive oil filters
Fuel filters
Air filters
Hydraulic filter elements
Applicable filter element length: ≤1000mm
1. Glue Dispensing Head System
Adjustable lifting and horizontal movement
Fine adjustment of adhesive volume
Suitable for different filter element sizes
2. Conveying System
Two synchronous belts for pressing and conveying
Flat belt conveyor output
Main motor: 200W
Conveyor motor: 200W
3. Hot Melt Adhesive System
Heating power: 4kW
Motor power: 0.12kW
4. Infrared Monitoring System
Entrance positioning cylinder infrared sensor
Glue dispensing head infrared sensor
5. Upper & Lower Guide Plates + Guide Blocks
4 guide plates with guide blocks
Prevent filter elements from falling
Ensure stable and accurate feeding
6. Control System
Independent speed control for main motor and conveyor motor
Production counter
Emergency stop switch
and melted at high temperature, then accurately dispensed onto the filter element joint through the glue nozzle.
The synchronous belts apply pressure to clamp and bond the joint while simultaneously transporting the finished product backward. The bonded filter element is finally discharged through the flat belt conveyor.
1. Loading Preparation
Place the Full-Auto Hot Melt Filter Paper Bonding Machine with the joint facing upward into the gap between the left and right guide plates. Align the opening center with the guide block. The next filter element can be placed between the upper and lower guide plates to prevent falling.
2. Manual Feeding
Push the filter element forward slightly until the positioning cylinder infrared sensor detects the product.
3. Automatic Release
The positioning cylinder retracts and allows the filter element to enter the glue dispensing station.
4. Adhesive Dispensing
When the glue dispensing infrared sensor detects the correct position, the solenoid valve opens and the dispensing head applies adhesive.
5. Pressing and Conveying
The synchronous belts move the filter element out of the glue station while pressing and securing the bonded joint.
6. Intermittent Conveying
The synchronous belts transport filter elements intermittently. After a certain quantity accumulates, the products drop onto the flat belt conveyor.
7. Finished Product Output
The flat belt conveyor transfers finished filter elements outside the machine.
1. Long Filter Element Bonding Capability (≤1000mm)
The Full-Auto Hot Melt Filter Paper Bonding Machine supports a maximum bonding length of 1000mm, making it suitable for large filter applications such as heavy-duty truck filters and construction machinery filter elements.
2. Dual Infrared Monitoring for Accurate Bonding
The positioning infrared sensor and glue dispensing infrared sensor ensure accurate operation only when the filter element is correctly positioned, preventing glue leakage and incomplete bonding.
3. Integrated Synchronous Belt Pressing & Conveying
The dual synchronous belts perform both pressing and conveying functions, reducing manual handling and improving production efficiency.
4. Adjustable Glue Volume Control
Each glue dispensing head is equipped with an independent adjustment screw:
Clockwise rotation: reduce adhesive output
Counterclockwise rotation: increase adhesive output
Suitable for different filter specifications.
5. Adjustable Glue Dispensing Head Position
The height and horizontal position of the glue head can be quickly adjusted through hand wheels and adjustment bolts.
6. Easy Synchronous Belt Tension Adjustment
Independent hand wheels on both sides allow quick adjustment of belt tension, ensuring uniform pressing force and reliable bonding quality.
7. Guide Plates Prevent Filter Falling
The four guide plates and guide blocks at the entrance ensure smooth feeding and prevent filter elements from tilting or falling.
8. Adjustable Production Speed
Both the main motor and conveyor motor are equipped with independent speed controllers.
10–30 pieces/min adjustable
| Parameter | Specification |
| Model | PLRZ-1000N |
| Production Capacity | 10 – 30 pcs/min (adjustable) |
| Max Filter Element Passage Length | 1000 mm |
| Main Motor Power | 200 W |
| Conveyor Motor Power | 200 W |
| Hot Melt Adhesive Motor Power | 0.12 kW |
| Hot Melt Adhesive Heating Power | 4 kW |
| Total Power | Approx. 4.5 kW |
| Air Supply Pressure | 0.6 MPa |
| Power Supply | 220V / 50Hz (customizable) |
| Overall Dimensions (L × W × H) | 1865 × 806 × 2037 mm |
Install the machine on a flat, clean, and well-ventilated floor away from high-temperature dust environments.
Keep more than 1 meter clearance from both sides and more than 1.5 meters clearance at the front and rear.
Use a forklift with a capacity above 1 ton for transportation.
Fix the machine and adjust the level properly.
Connect 220V/50Hz power supply with independent grounding.
Required air pressure: 0.6MPa.
Check cables, emergency stop buttons, and safety cover doors before operation.
Q1: Why is the filter bonding not strong enough?
A: Common reasons include:
Insufficient glue volume → Increase adhesive output.
Conveyor speed too fast → Reduce the main motor speed.
Synchronous belt too loose → Adjust belt tension.
Q2: Can the machine bond filter elements longer than 1000mm?
A: The standard model supports a maximum length of 1000mm. Customized extended machine bodies and longer conveyors are available for special requirements.
Q3: What should I do if the filter element gets stuck or falls?
A: Check whether the entrance guide plates are deformed, the guide block is properly aligned, and the synchronous belt tension is correct. Adjust according to the operation manual.
Q4: How long does the hot melt adhesive system need to preheat?
A: It usually takes about 15–20 minutes to reach the preset temperature (normally 150–180°C depending on adhesive type). Heating before each production shift is recommended.
Fully automatic hot melt adhesive filter bonding machine for mass production of long filter elements (≤1000mm).
Free sample testing available. Customers can send filter samples for bonding tests.
Bulk orders are eligible for discounts. Please contact sales for delivery time.
Customized solutions available, including longer bonding length, different voltage requirements, and special glue dispensing heads (round, square, etc.).
English and Chinese manuals, electrical diagrams, and pneumatic component lists are provided with the machine.
As a professional exporter of filter cartridge bonding equipment, we promise factory-direct prices, a one-year warranty, and long-term supply of consumable parts (synchronous belts, dispensing heads, heating elements, infrared switches, etc.). Welcome to request a quotation or visit our factory.
